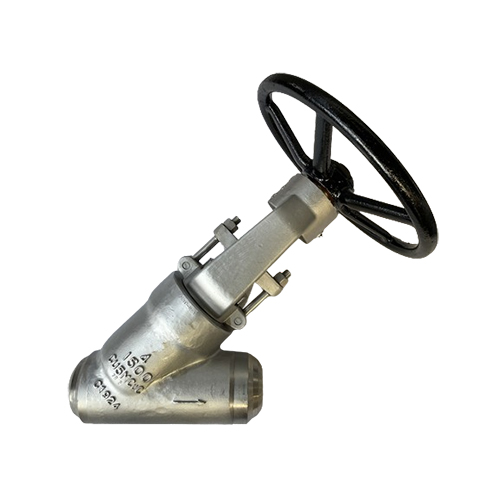

Y Pattern Globe Valve: Reducing Flow Loss While Improving Industrial Control Efficiency
In modern industrial piping systems, valve selection is not only about shutting off a pipeline. For applications that require continuous flow regulation, pressure management, and stable operation under demanding conditions, the internal flow path of a valve can have a significant impact on overall system performance.
This is where the Y Pattern Globe Valve offers a distinctive engineering advantage. By changing the traditional globe valve body configuration into a Y-shaped flow path, this design allows fluid to move through the valve along a more direct route. The result is reduced pressure loss, less turbulence, and improved flow efficiency while maintaining the throttling capability associated with globe valves.
As industrial facilities continue to focus on energy efficiency, equipment reliability, and process control, Y Pattern Globe Valves are becoming an important solution for steam, power generation, oil & gas, petrochemical, and chemical processing systems.
Conventional globe valves are well known for their precise throttling capability, but their internal flow path can generate relatively high pressure loss because the fluid must change direction as it passes through the valve.
The Y Pattern Globe Valve addresses this challenge through its angled body configuration. The valve’s internal passage is positioned at an angle, creating a straighter route for the medium.
This design combines two important characteristics:
Precise regulation + improved flow efficiency
According to ZHONGYOU VALVE, the Y-pattern structure is designed to minimize turbulence and pressure drop compared with conventional globe valve configurations. The valve therefore provides an effective option for systems where both flow control and energy efficiency are important.
Rather than simply increasing valve size to compensate for pressure loss, engineers can consider an optimized flow-path design to improve the overall performance of the pipeline.
Where Flow Efficiency Becomes a Critical Factor
Pressure loss inside a valve may appear to be only one part of a complete piping system, but its influence can extend throughout the process.
In steam and high-temperature fluid systems, unnecessary pressure loss can affect process efficiency. In power generation, maintaining stable steam flow is essential for reliable equipment operation. In chemical processing, accurate flow adjustment can directly influence production conditions.
For these applications, a Y Pattern Globe Valve can provide a useful combination of:
- Reduced pressure loss
- Improved flow characteristics
- Precise throttling
- Reliable shut-off
- Resistance to erosion and wear
- Long-term operational stability
The product is specifically positioned for applications requiring precise flow regulation while maintaining durability in high-pressure and high-temperature environments.
Performance Begins with the Internal Structure
The advantages of a Y Pattern Globe Valve do not come from its external shape alone. The interaction between the valve body, disc, seat, and flow passage determines its actual performance.
The disc and seat arrangement allows the valve to regulate the flow progressively. By changing the position of the disc, operators can control the amount of fluid passing through the pipeline.
At the same time, when the valve is fully closed, the disc and seat provide reliable sealing performance.
This makes the Y Pattern Globe Valve suitable for systems that may require both:
Flow regulation during normal operation,and Pipeline isolation during maintenance or emergency conditions.
The combination provides greater flexibility than a valve designed solely for basic on/off isolation.
Designed for Demanding Media and Operating Conditions
Industrial valves may be exposed to high temperature, high pressure, corrosion, erosion, and frequent flow adjustment. These conditions place considerable demands on valve materials and internal components.
ZHONGYOU VALVE’s Y Pattern Globe Valve can be manufactured using materials including cast steel, stainless steel, and alloy steel. Material selection can therefore be matched to different operating environments and media characteristics.
Cast Steel:Cast steel provides a balance of mechanical strength, durability, and cost efficiency, making it suitable for many general industrial applications.
Stainless Steel:Stainless steel can provide enhanced corrosion resistance and is suitable for applications where the operating medium or environment creates higher corrosion requirements.
Alloy Steel:Alloy steel can be considered for demanding temperature and pressure conditions where enhanced mechanical and thermal performance is required.
The correct material should always be selected according to actual pressure, temperature, medium, corrosion conditions, and applicable project standards.
Applications Across Major Industrial Sectors
The versatility of Y Pattern Globe Valves makes them suitable for a wide range of industrial systems.
Steam and Boiler Systems
Steam pipelines require valves that can operate reliably under elevated temperature and pressure. The reduced-flow-loss design of a Y Pattern Globe Valve makes it suitable for steam control applications where efficiency is important.
Power Generation
Power plants depend on stable fluid and steam management throughout boilers, turbines, and auxiliary systems. Reliable throttling and sealing performance can contribute to stable operation.
Oil & Gas and Petrochemical
Oil & gas and petrochemical facilities often require durable valves capable of handling demanding operating conditions. Y Pattern Globe Valves can be applied to process and fluid-control systems where precise regulation is required.
Chemical Processing
Chemical plants may involve corrosive or high-temperature media. Appropriate material selection combined with a robust valve design can provide dependable performance in demanding process environments.
General Industrial Fluid Control
Beyond energy and chemical industries, Y Pattern Globe Valves can be used in industrial systems requiring controlled flow, reliable isolation, and long-term operation.
Y Pattern vs. Conventional Globe Valve
The choice between a Y Pattern Globe Valve and a conventional globe valve should be based on the actual system requirements rather than simply the valve name.
| Factor | Y Pattern Globe Valve | Conventional Globe Valve |
|---|---|---|
| Flow Path | More direct angled flow path | Greater change in flow direction |
| Pressure Loss | Generally reduced | Generally higher |
| Flow Efficiency | Improved | Standard |
| Throttling | Excellent | Excellent |
| High-Pressure Service | Suitable | Suitable depending on design |
| High-Temperature Service | Suitable | Suitable depending on materials |
| Design Focus | Flow efficiency + regulation | Regulation + isolation |
| Typical Applications | Steam, power, oil & gas, petrochemical | General industrial flow control |
For systems where pressure loss is a major design consideration, the Y Pattern configuration can offer a meaningful advantage.
What Should Engineers Consider Before Selection?
Choosing a Y Pattern Globe Valve involves more than checking the pipeline diameter.
Engineers should evaluate:
Operating pressure: The valve pressure rating must correspond to the system’s maximum operating conditions.
Operating temperature: Body, seat, disc, and sealing materials must be compatible with the actual temperature range.
Medium: Gas, steam, water, oil, and chemical media can require different material and trim combinations.
Flow requirements: The valve should be selected according to required flow regulation and pressure-loss characteristics.
Installation conditions: Pipeline orientation, available space, connection requirements, and maintenance access should also be considered.
For customized industrial projects, working directly with an experienced valve manufacturer can help ensure that the valve configuration matches the actual application.
Manufacturing Reliability Behind the Product
A high-performance industrial valve depends not only on its design but also on manufacturing accuracy and quality control.
ZHONGYOU VALVE was established in Wenzhou and has nearly 20 years of experience in valve manufacturing. The company integrates R&D, manufacturing, and sales of high- and medium-pressure industrial valves. Its product portfolio includes gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves, strainers, and other special valves.
The company states that its products are manufactured in accordance with standards including GB, JB, ANSI, API, DIN, BS, GOST, and JIS. It also provides customized solutions based on customer drawings and specifications, with options for different materials, sizes, pressure ratings, and special structures.
Moving Toward More Efficient Industrial Flow Control
As industrial facilities pursue higher efficiency and more reliable process control, valve design is increasingly focused on reducing unnecessary energy loss without sacrificing control performance.
The Y Pattern Globe Valve represents this approach by optimizing the internal flow path while preserving the precise throttling characteristics of a globe valve. Its combination of reduced pressure loss, reliable sealing, durability, and suitability for high-pressure and high-temperature environments makes it a valuable option for demanding industrial applications.
For steam systems, power plants, oil & gas facilities, petrochemical projects, chemical processing, and other industrial fluid-control applications, selecting the right valve configuration can contribute to better system efficiency and long-term reliability.
ZHONGYOU VALVE provides Y Pattern Globe Valve solutions for customers seeking a combination of flow efficiency, precise regulation, and durable industrial performance.
